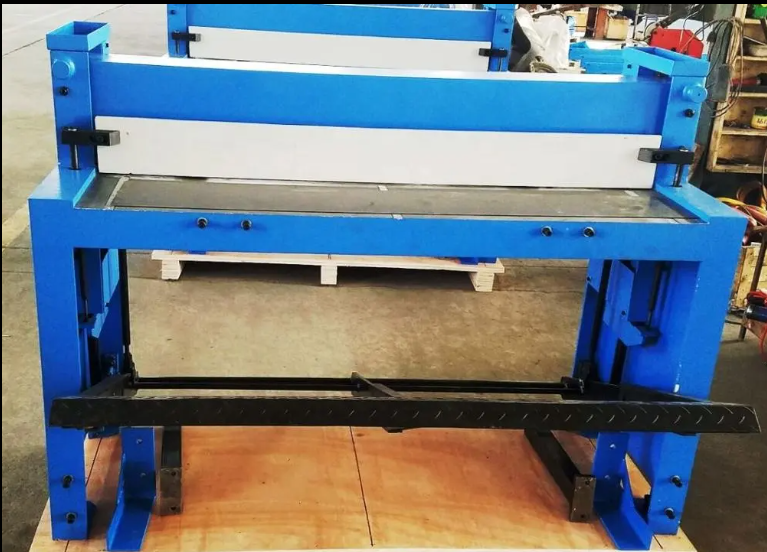

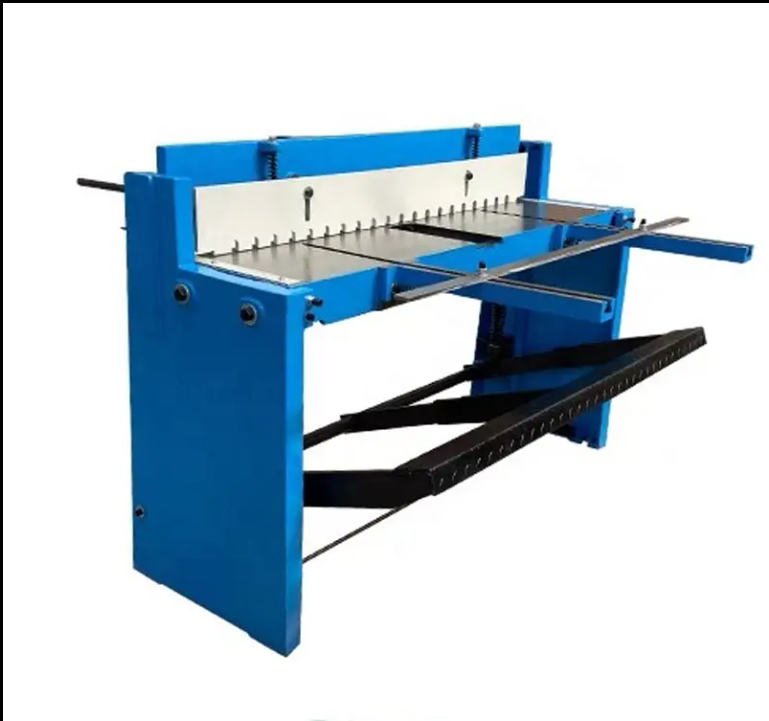

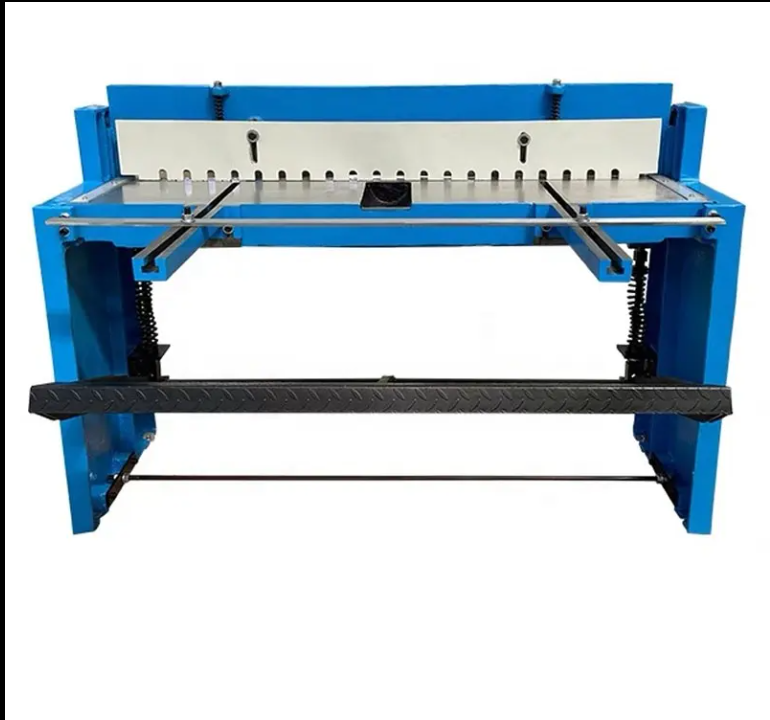

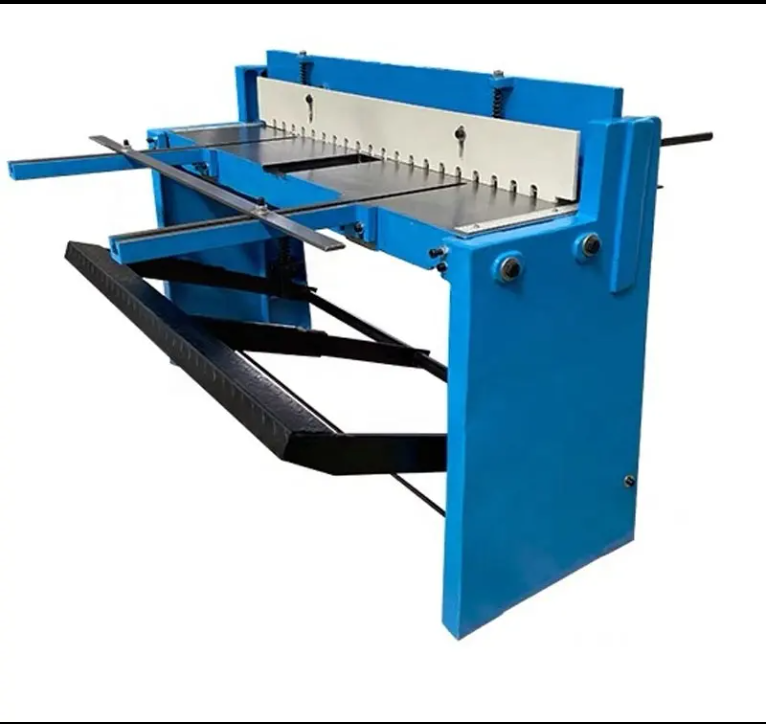

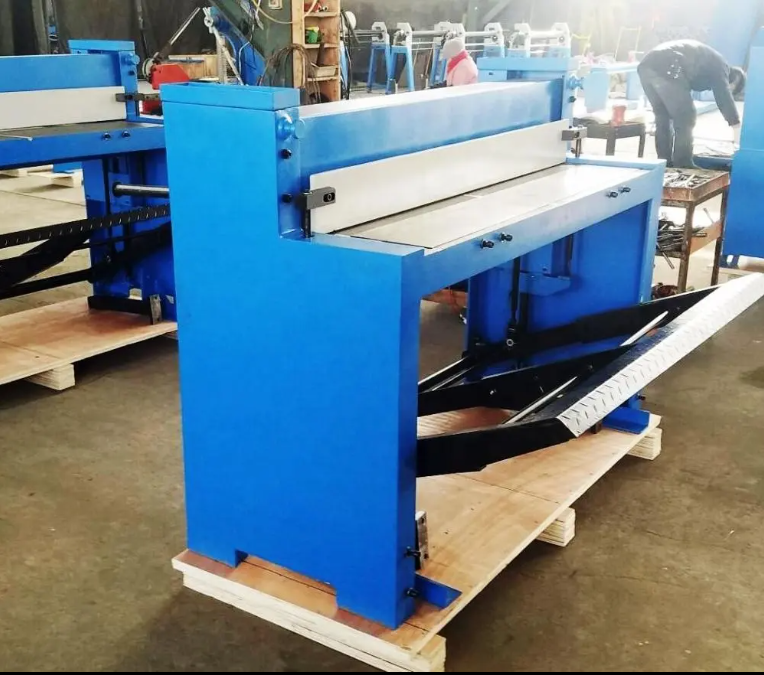

Sheet Metal Hand Guillotine Shear Cutting Tool Shearing Machine Price of Shearing Machines

Q01-1.5x1320
Steel welded machine frame.
Sheet hold down device
Ball Bearing Table
Front sheet support arms.
Tool Steel Blade

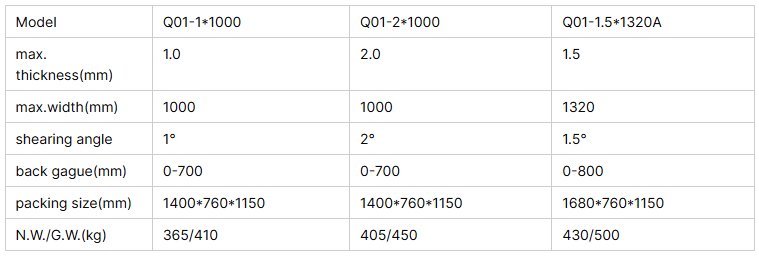

Capacity: Max. cutting size:4mmx1300mm (calculated on basis of MS with the tensile strength 450 steel,
cutting angle: 2°
Length of blade 1350 mm
height of worktable: 880mm
Back gauge: 0-800 mm
overall Dimension: 1680x760x1150 mm
Weight: 500 kg
other models can be customized
