Good Price Tube Pipe Profile Bending Machine Steel Profile Roll Bending Machine

Metform round bending machine can be combined with various mold wheels in order to meet various processing demands.

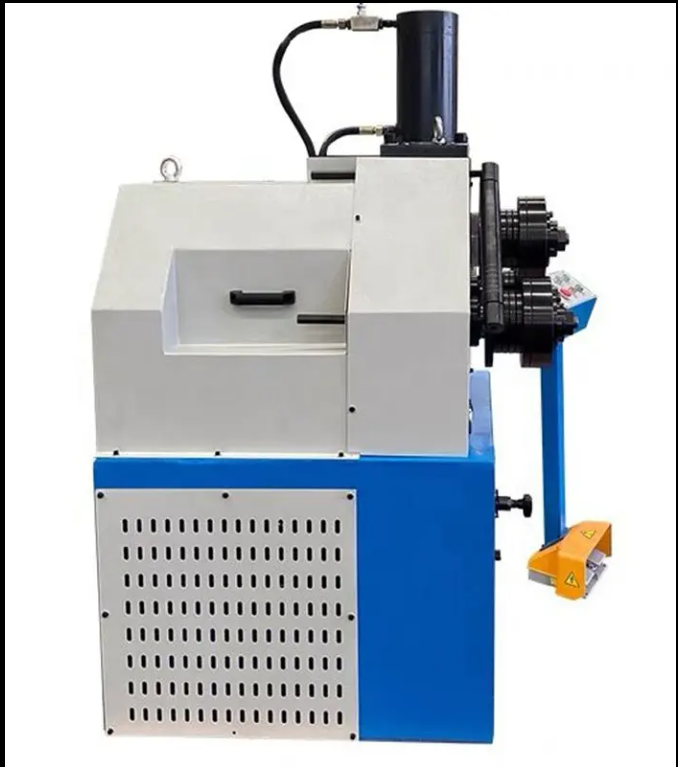

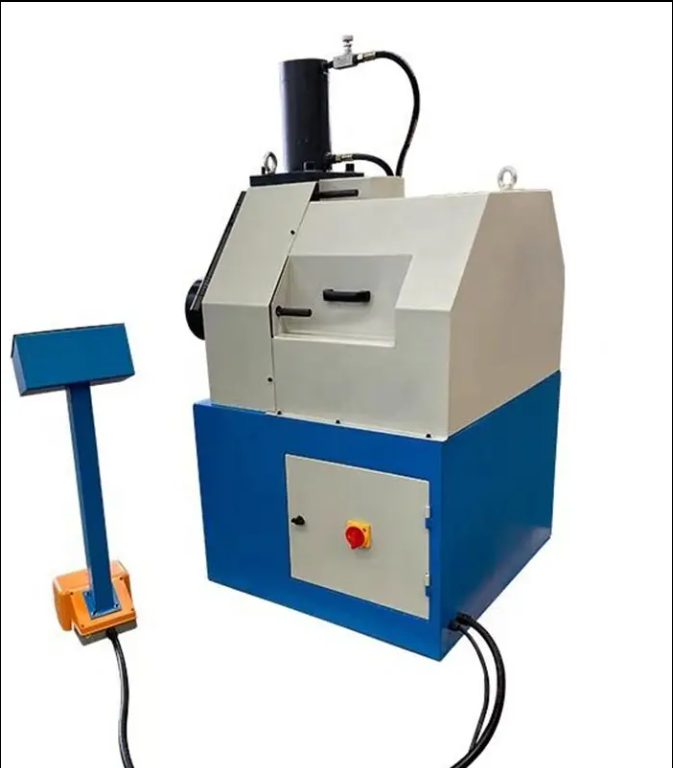

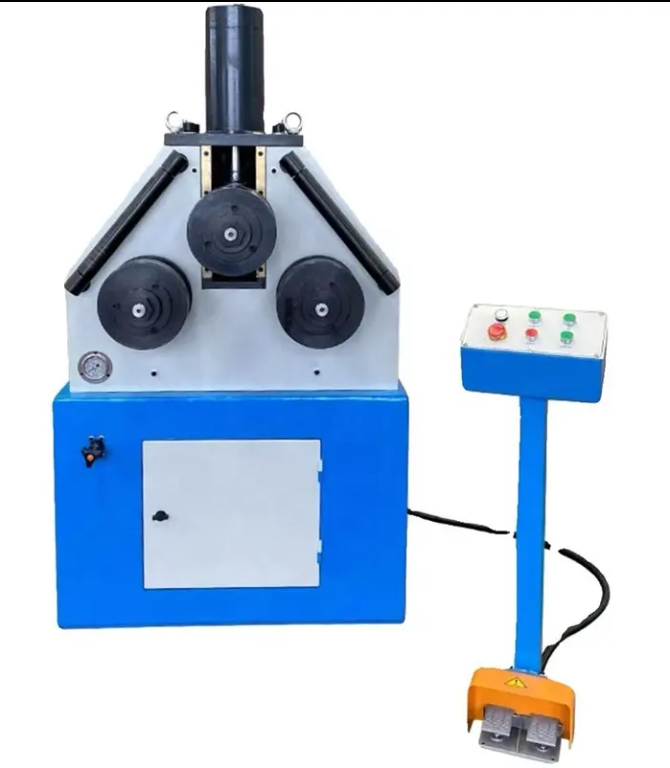

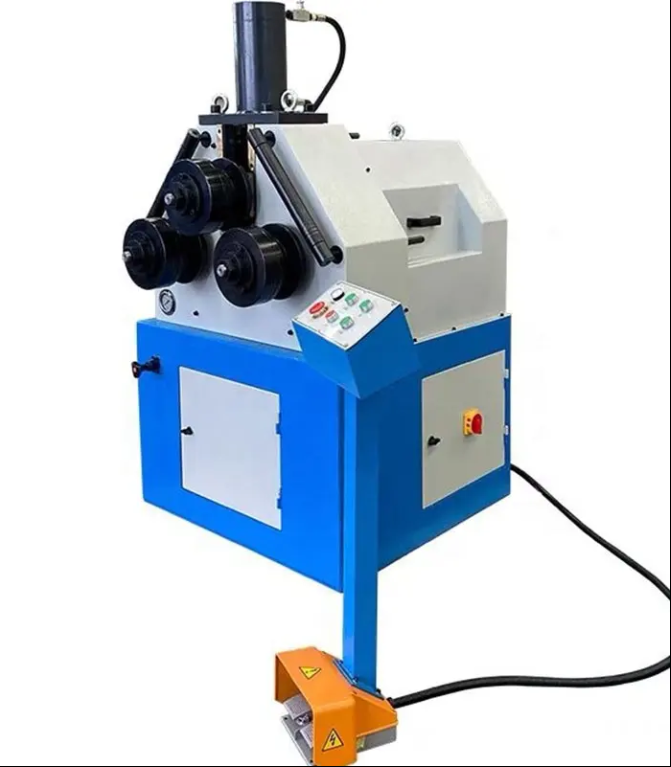

Pipe and Profile roll bending machine RBM50HV is a versatile, economical yet powerful universal profile bender. It is easy to operate and is well suited for bending angle, pipe, tube, aluminum extrusions and other section bars.
Casting machine frame
Rollers are made of alloy steel, hardened and grounded.
Hardened precision threaded shafts, made of alloy steel
Dual lateral guides
Rollers are driven by motor

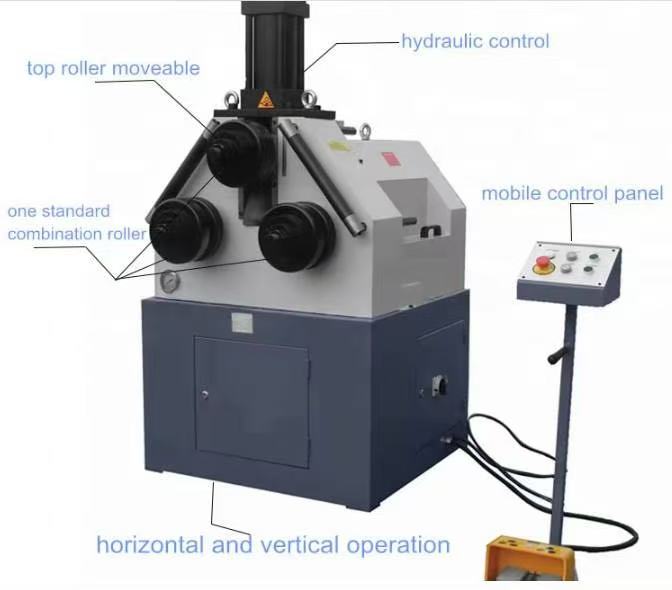

Upper roll is moveable and screw up and down manually.

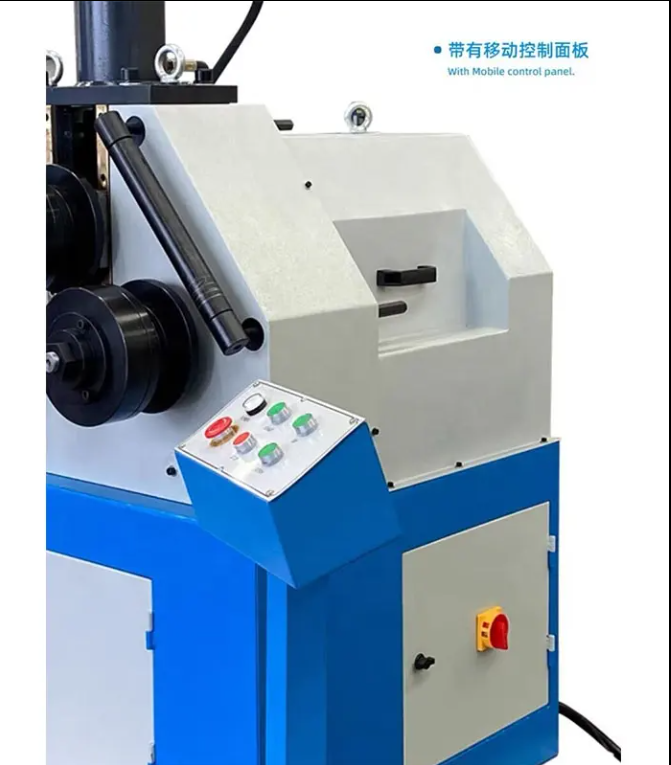

Pedal switch operating
Working in both vertical and horizontal way
Standard Accessory: 1 set of general purpose rollers, composite type and suitable for Angle, flat and Rectangular tubes.
Special Accessories: Rollers for round pipe (upon request but not included in the price)

Dia. Of roll Shaft φ50 (mm)
Motor Power: 2.2 kW
Spindle speed: 13 r/min
Packing Size: 100x82x155cm
N.W./G.W. 450/582 KG

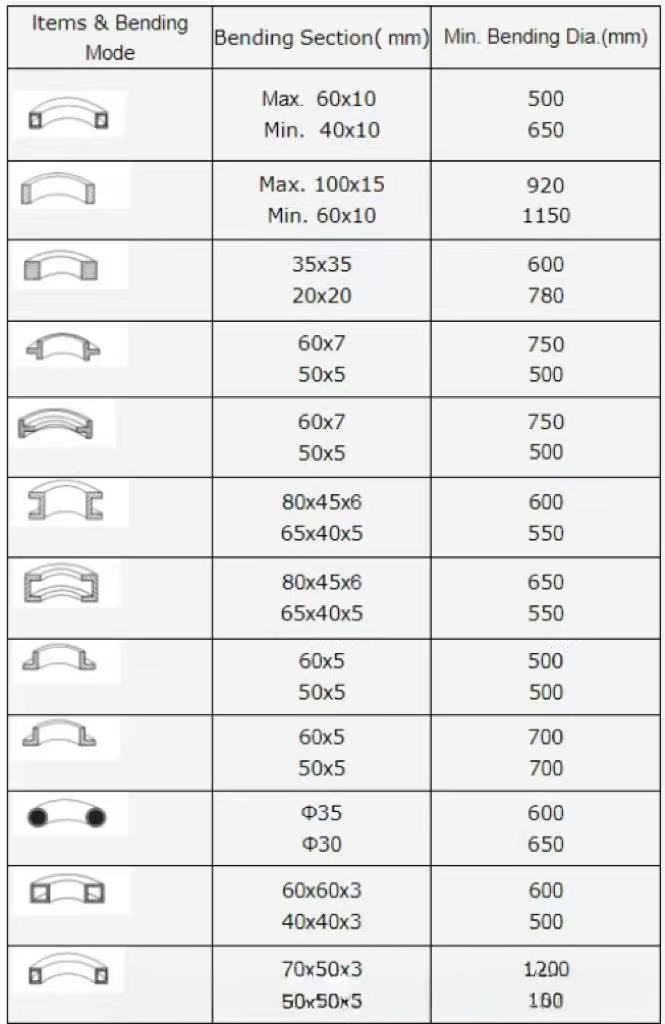

Bending capacity as below
